X5746 Rotary Head Ram Type Universal Milling Machine

X5746 Rotary Head Ram Type Universal Milling Machine

The X5746 is a compact ram milling machine designed for small to medium-sized workpieces, offering excellent flexibility and precision for tool rooms, maintenance shops, vocational schools, and prototype development. Featuring a movable ram and swiveling milling head, this machine allows operators to reach difficult areas and machine compound angles without repositioning heavy workpieces. It is an ideal choice for shops needing ram-type versatility in a more space-efficient and affordable package compared to larger models.

Pedido (MOQ) :
1
Origen del producto :
China
Color :
Customized
Puerto de embarque :
Qingdao
Plazo de entrega :
30
Peso :
3600Kg

Pregunte ahora

X5746 Ram Milling Machine

1.The X5746 is ideal for machining jigs, fixtures, and mold components. Its swiveling head and ram travel allow operators to cut complex angles and reach deep cavities without repositioning the workpiece.

2.Perfect for re-machining worn shafts, repairing damaged equipment parts, and fabricating custom replacement components. The ram extension provides access to hard-to-reach areas on large assemblies.

3.An excellent teaching machine for demonstrating advanced milling techniques, including angle cutting, dovetail machining, and compound setups. Its compact size fits easily in classroom workshops.

4.Ideal for R&D labs and prototype shops producing one-off custom parts. The variable speed spindle and swiveling head enable quick adjustments for design changes without lengthy setup times.

5.Perfect for job shops handling diverse orders with varying geometries. The ram and swiveling head eliminate the need for multiple setups, reducing production time for small batches of complex parts.

specification


Specification	Unit	X5746
Table size	mm	460×1235
T-slots(NO./width/pitch)	mm	5/18/80
Table travel (XY/Z)	mm	900/650/450
Swivel angle of milling head		360°
Spindle taper	-	ISO40
Spindle speed range	rpm	(27)30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	58-508
Distance from spindle center line to column	mm	20-670
Main motor power	Kw	5.5
Feed motor	Kw	AC servo motor X/Y:18NM;Z:27NM
Max load	Kg	800
Overall size	mm	2570×2035×1990
weight	kg	3600

Product Advantages

400mm Ram Travel
Extends spindle reach for machining large or awkwardly shaped workpieces without repositioning.
±90° Swiveling Head
Machines compound angles, dovetails, and inclined surfaces in a single setup, eliminating special fixtures.
Variable Speed Spindle
Wide speed range for optimal cutting from heavy roughing on steel to precision finishing on aluminum.
R8 / NT30 Spindle Taper
Compatible with standard tooling for easy setup and reduced tooling costs.
Compact & Affordable
Space-saving design delivers ram-type versatility at a lower investment, ideal for small shops and training facilities.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

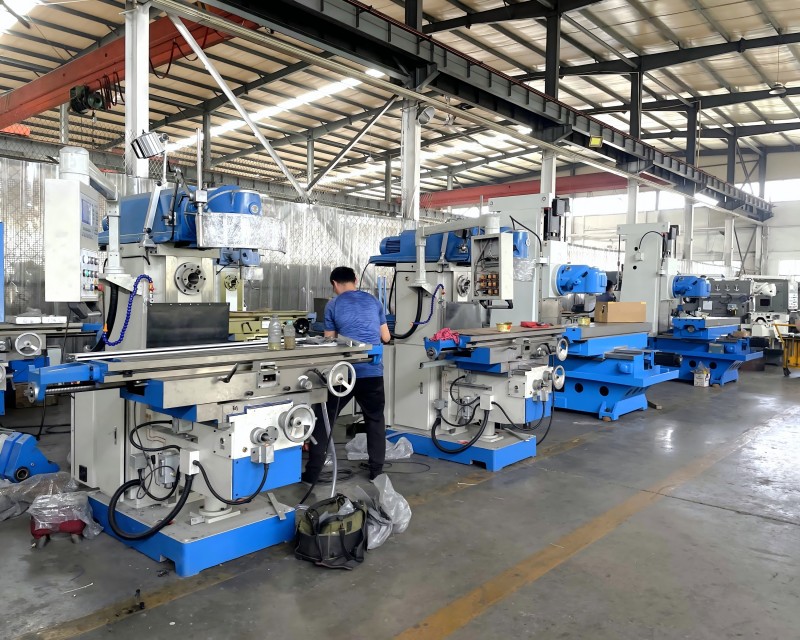

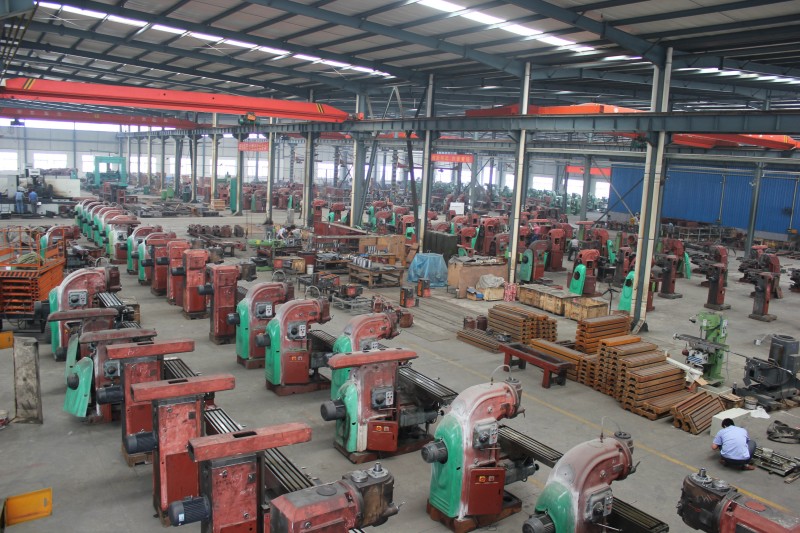

factory show

Professional Production Base, Strength in Precision Manufacturing

Multi‑Function Universal Milling Equipment High-quality lathe Industrial milling machines Vertical and Horizontal Milling Machine

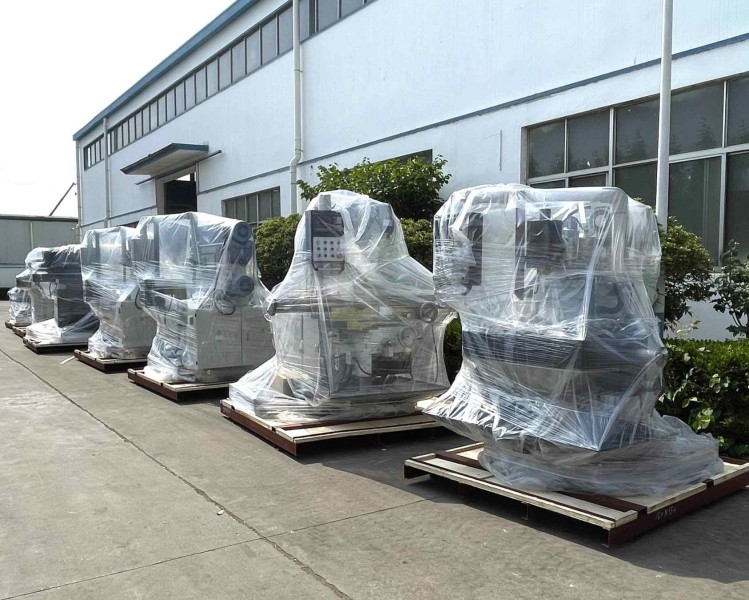

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

High Quality Universal Ram Milling Machine
Heavy machinery manufacturer

1. What is the maximum ram travel distance?

The X5746 offers 400mm (15.7 inches) of horizontal ram travel, allowing the spindle to reach beyond the table edges for oversized or awkwardly shaped workpieces.

2.What spindle taper does this machine use?

The X5746 comes with a standard R8 spindle taper, with an optional NT30 available. Both are widely compatible with common milling tooling.

3.Can the milling head cut at angles?

Yes, the milling head swivels ±90° left and right, enabling compound angle cutting, dovetail machining, and inclined surfaces without special fixtures.

4.What is the spindle speed range?

The spindle speed is steplessly variable from 60 to 3500 RPM, allowing operators to select optimal speeds for different materials and cutting conditions.

5.What materials can the X5746 machine?

The X5746 can machine steel, stainless steel, cast iron, aluminum, brass, copper, and various plastics with its powerful 2.2 kW (3 HP) motor and rigid construction.
