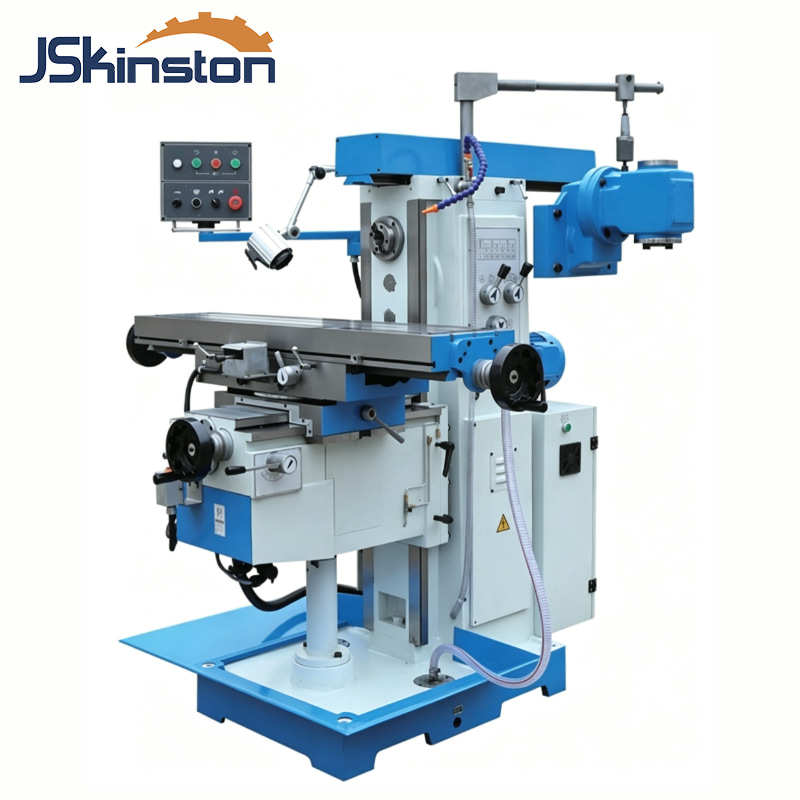

Long Table Horizontal Milling Machine for Extended Parts XQ6032A/C

Long Table Horizontal Milling Machine for Extended Parts XQ6032A/C

XQ6032A/C is a compact horizontal milling machine with flexible configurations. It supports optional rotary table and customized worktable for small workshops.The XQ6032A is an economical horizontal milling machine with a 3kW spindle and servo-driven XYZ axes. Its compact size and affordable price make it ideal for small repair shops and training labs.

Pedido (MOQ) :
1
Origen del producto :
China
Color :
Customized
Puerto de embarque :
Qingdao
Plazo de entrega :
30
Peso :
1700Kg

Pregunte ahora

Compact Horizontal Milling Machine with Flexible Configurations

1.Entry-level horizontal milling machine: Provides horizontal milling capabilities at the lowest cost, ideal for users on a tight budget.

2.Servo feed: Three-axis servo motors ensure smooth feed, accurate positioning and low energy consumption.

3.Lightweight and versatile: Net weight 1600 kg, compact footprint, suitable for installation in workshops on upper floors.

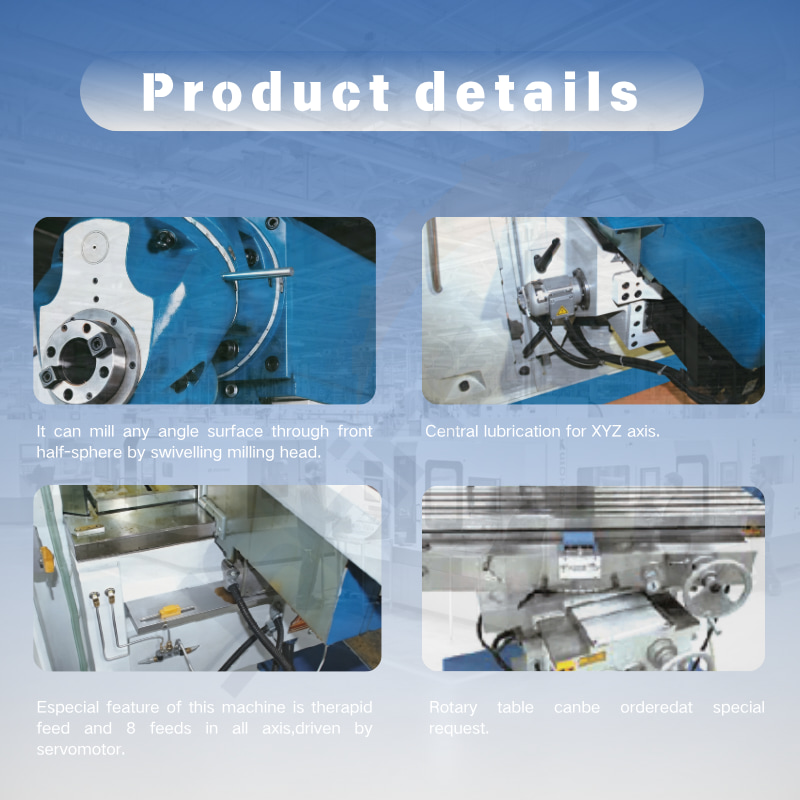

4.Vertical and horizontal machining: Optional vertical milling head available for vertical milling, offering multi-purpose functionality.

specification

Specification	Unit	XQ6032A	XQ6032C

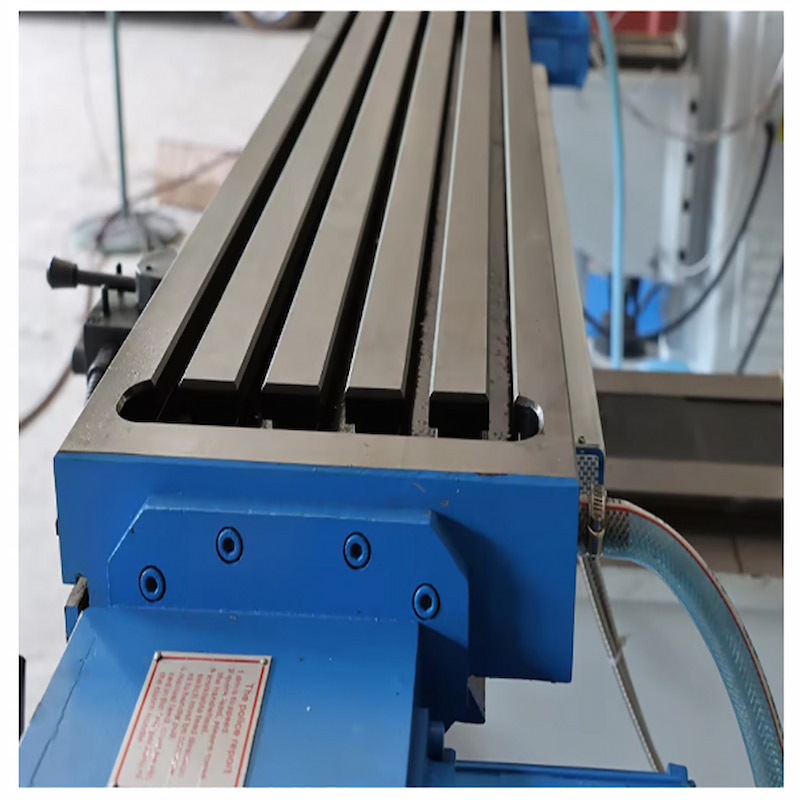

Tabe size	mm	1370×320
Tabe Travel(X/YIZ)	mm	820/300/400	1000/380/400
Spindle laper	---	7:24 ISO40
Rapid speed of table(XY/Z)	mm/min	1335/1335/1000
Table feed(XM/Z)	mm/min	XY:30-830 Z:23-625
T-sots(NO.Midth/Pitch)	mm	3/14/80

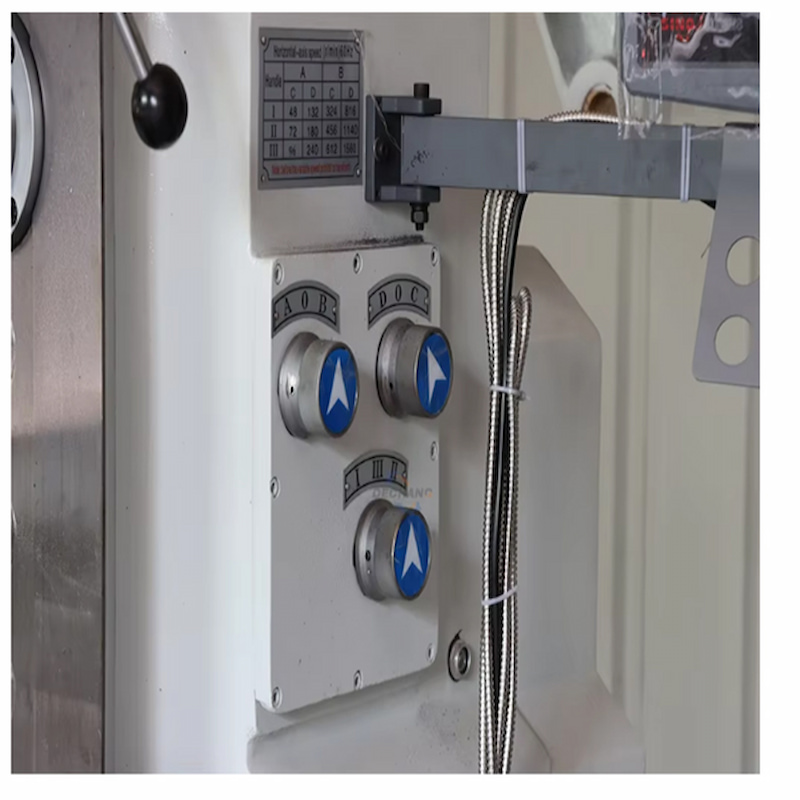

Horiontal spirdle speed	r/min	12 steps 35-1500
Distance between spindle nose and table suface	mm	75-475
Distance between spindle axis and column guideway	mm	155
Main motor	kw	3
Torque of XYIZ axis AC servo motor	N.m	15
Overall size	mm	1820×1680x1730
Net weight	kg	1600	1700

Product Advantages

Lowest Cost Entry to Horizontal Milling
Entry-level price for horizontal spindle capability – ideal for budget-conscious repair shops and schools.
Smooth Precise Servo Feeds
Three-axis servo motors – smooth feed, accurate positioning, low energy consumption, quiet.
Lightweight Small Footprint
Net weight 1600 kg – small floor area, can be placed on ordinary floors, no foundation needed.
Optional Vertical Head
Add vertical head for both vertical and horizontal milling – one machine multiple uses, better value.
Hardened Guideways Wear-Resistant
Quenched and ground guideways with PTFE coating – good wear resistance, lasting accuracy.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

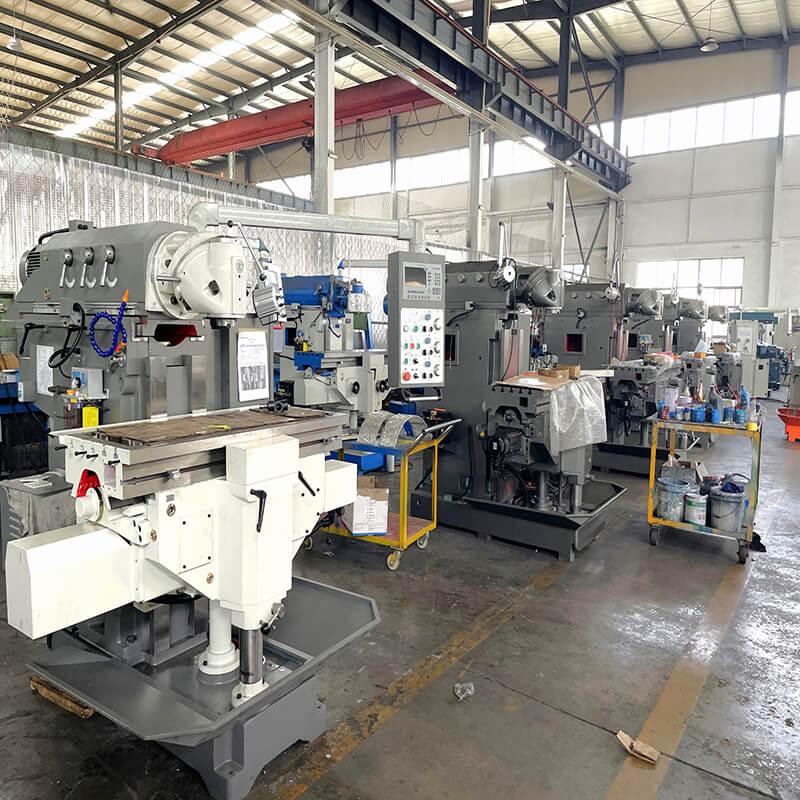

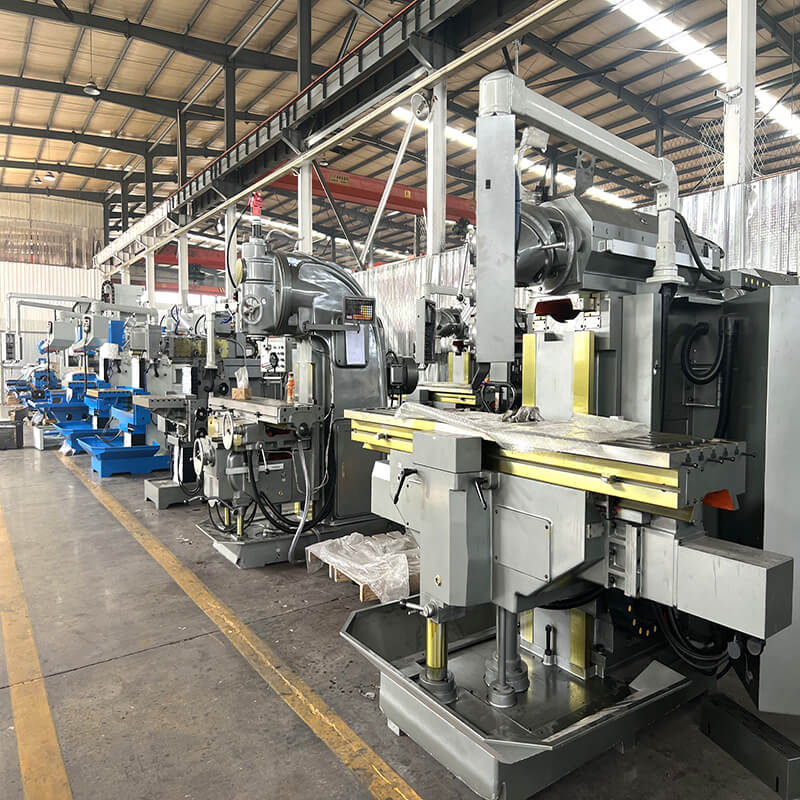

factory show

Professional Production Base, Strength in Precision Manufacturing

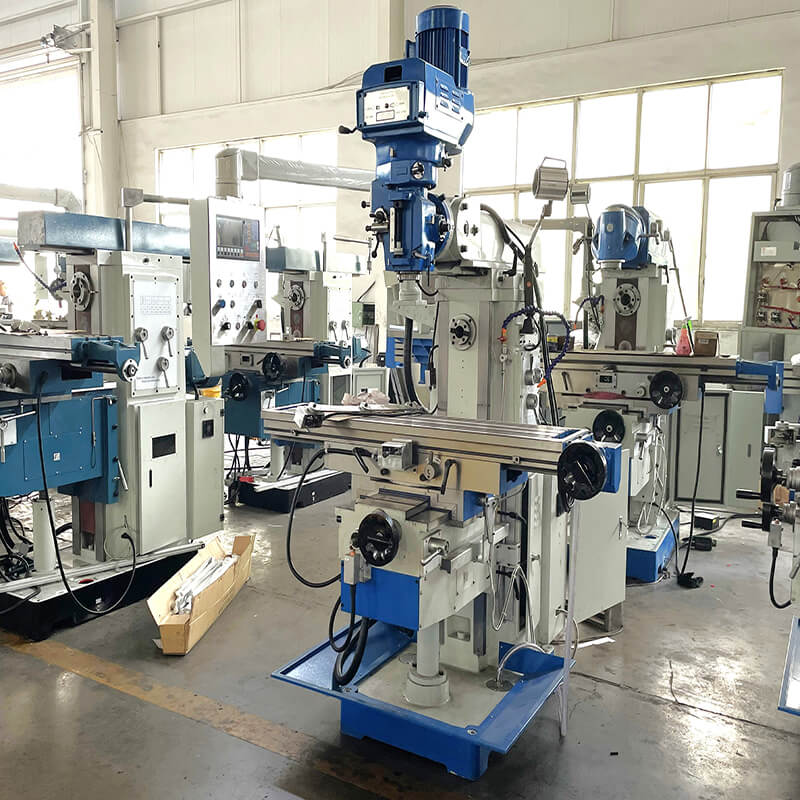

Multi‑Function Universal Milling Equipment Factory Exhibition cnc machine High-quality lathe

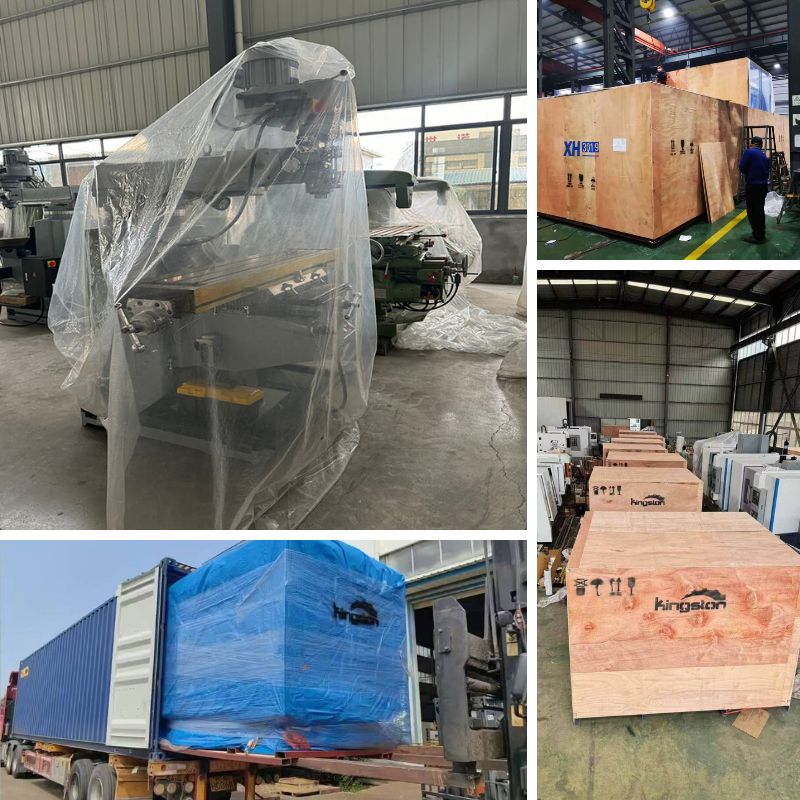

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Stable Universal Metal Milling Machine
Heavy machinery manufacturer

1.What materials is the XQ6032A suitable for machining?

Aluminium alloy, copper, plastic, cast iron, low-carbon steel, etc.

2.Can a tool holder be fitted?

The machine comes standard with a cantilever and tool holder, and can accommodate a 25.4 mm tool holder.

3.Does it have a cooling system?

A cooling pump and nozzle are included as standard.

4.Can the voltage be customised?

Yes, 220V/380V/415V, 50/60Hz are all available.

5.What is the lead time?

We hold stock and can dispatch within 7 days.
