CW61160Bx5000mmx10T Horizontal Lathe Machine Equip With Motorized Tailstock

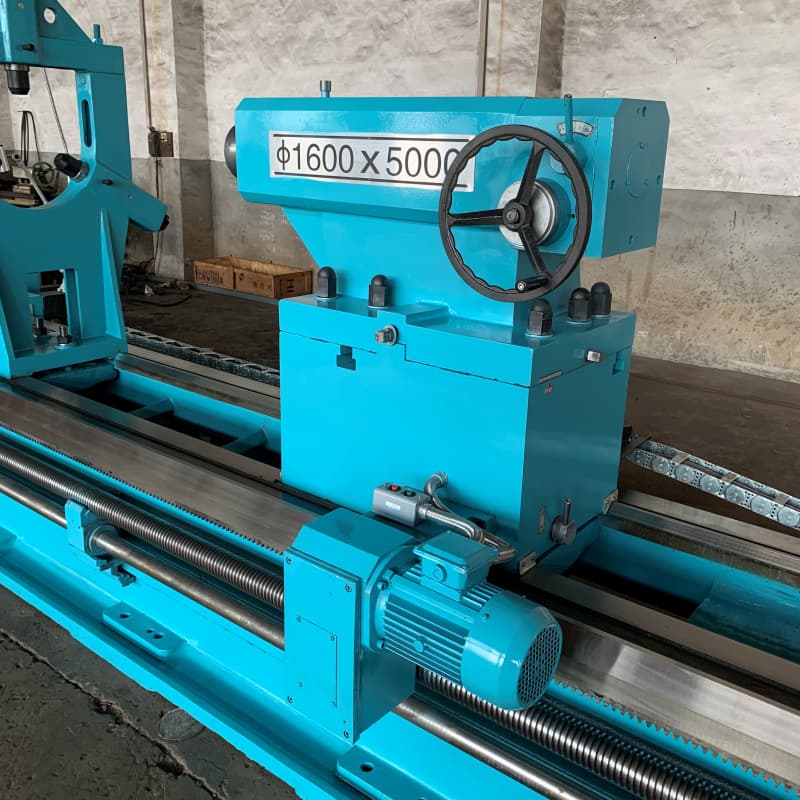

The CW61160B heavy-duty horizontal lathe is a large-size conventional lathe built for heavy-load turning operations. With a maximum workpiece weight of 10 tons and a processing length up to 5000mm, it is engineered for machining extra-long and heavy cylindrical workpieces. The robust one-piece bed and thickened main structure deliver outstanding rigidity and vibration resistance, enabling stable performance during rough turning, facing, threading and grooving on various metal materials. Equipped with a motorized tailstock, it greatly simplifies operation and improves alignment efficiency for long shaft parts.

Pedido (MOQ) :
1
Origen del producto :
China
Color :
Customized
Puerto de embarque :
Qingdao
Plazo de entrega :
30
Peso :
15000Kg

Pregunte ahora

CW61160Bx5000mmx10T Horizontal Lathe Machine Equip With Motorized Tailstock

This lathe is fitted with a well-designed transmission system and a broad range of adjustable spindle speeds, which deliver steady power output and uniform rotating performance throughout different working conditions. All core mechanical components are precisely manufactured and assembled, effectively lowering running friction and ensuring reliable performance during long-hour continuous operation.

The machine is mainly suitable for cutting the workpiece inside and outside round cylindrical, cone and other rotating parts, machinable various commonly used metric, inch, module and diametral pitch thread, and broaching oil groove and keyway.

specification

Items	Unit	CW61160Bx5000mmx10T
Swing over bed	mm	1600
Swing over carriage/cross slide	mm	1200
Max. Length of work piece	mm	5000
Max. Weight of work piece	ton	10
Guide rail width	mm	755
Spindle bore and nose head	mm	130
Taper spindle hole front cone and top	mm	φ140 , MT6
Spindle speed and range	r/min	3.15-315 (Foreward )21kinds； 3.5-278 (Reversal)12kinds
Number of feeds per revolution (longitudinal/ transverse)	mm	56 kinds;0.1-12/ 56kinds;0.05-6
Number and range of metric thread	mm	44;1-120
Number and range of inch thread		31;24-1/4T.P.I
Number and range of module thread	mm	45;0.5-60
Number and range of diametrical pitch thread		38; 1/2-56Dp
Max. travel of lower slide	mm	820
Max. travel of middle tool slide	Mm/min	935
Max. travel of top slide	mm	300
Tool rest fast moving speed Longitudinal	Mm/min	3740
Tool rest fast moving speed Horizontal	Mm/min	1870
Diameter of Tailstock quill	mm	198
Travel of tailstock quill	mm	300
Main motor power	kw	22
Machine size (LxWxH) about	mm	8100x2150x2400
Machine weight about	kg	15000

Product Advantages

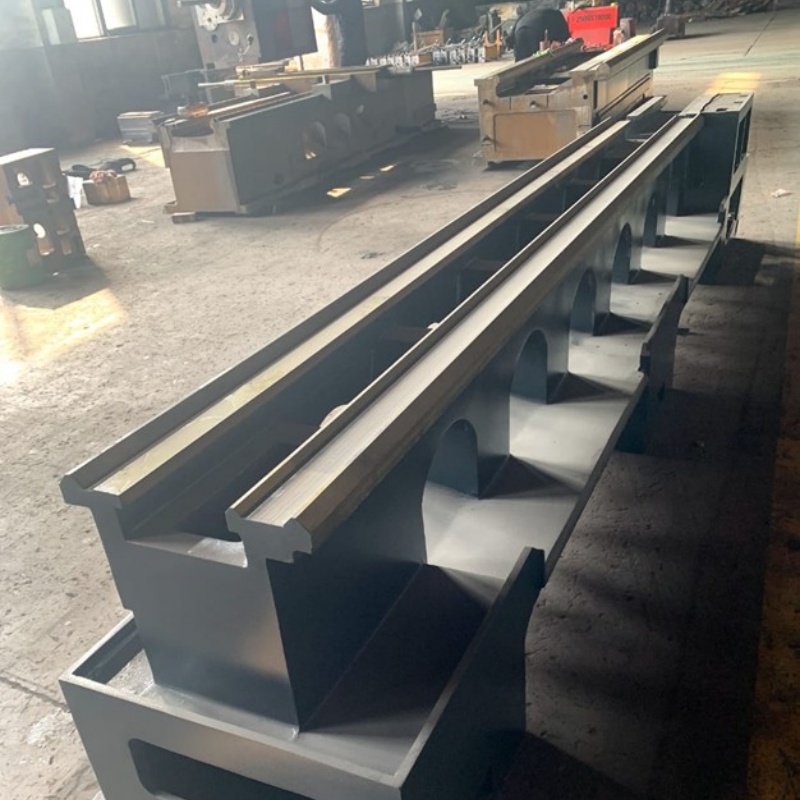

Rigid & Precision Bed Structure

Adopts integrally cast HT250 lathe bed with optimized internal steel layout. Guide rails undergo high-frequency quenching and precision grinding, delivering excellent rigidity, stable accuracy and powerful cutting capacity.
Flexible Spindle & Easy Operation

Features fast-moving sliding box and intuitive single-handle operation. Spindle shifting, reversing and braking support both hydraulic and manual control for flexible selection.
Versatile Machining Capacity

Equipped with motor-driven tool rest, supporting longitudinal feed and taper turning. It performs cylindrical turning, facing, drilling, boring and other processes for various metal workpieces.
Reliable Performance & Safety

Wide spindle speed range adapts to heavy and high-speed cutting. Forced lubrication ensures stable operation. Overload protection structure effectively prevents machine damage.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

vertical milling machine

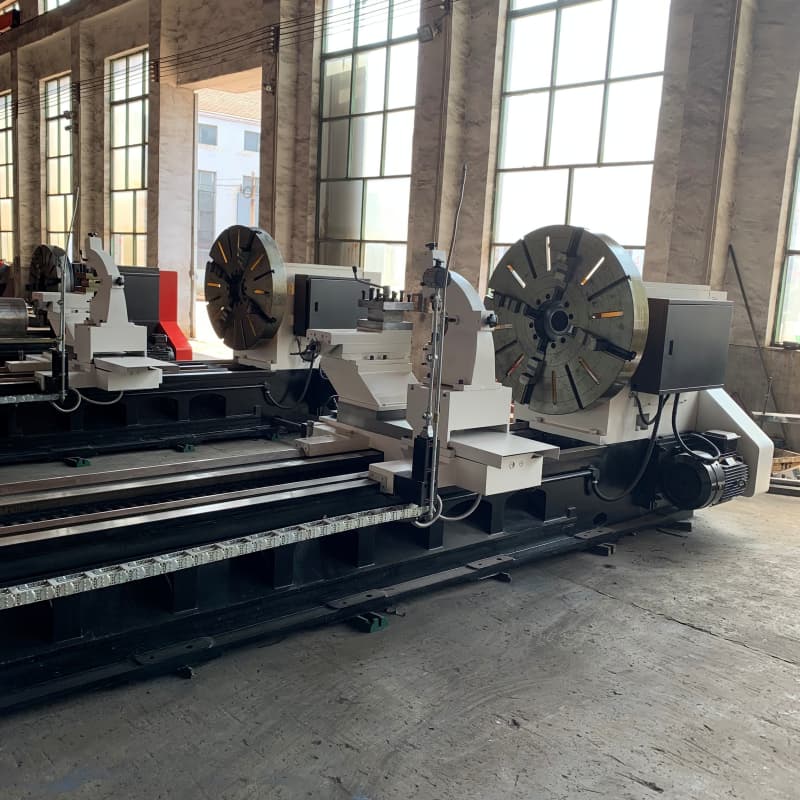

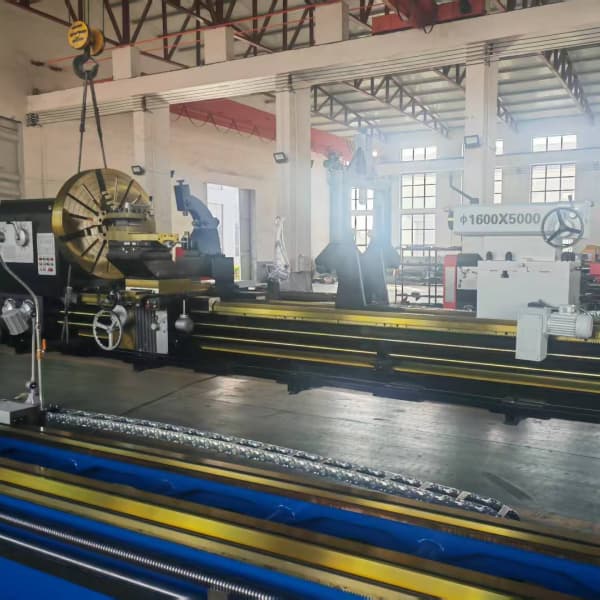

factory show

Professional Production Base, Strength in Precision Manufacturing.

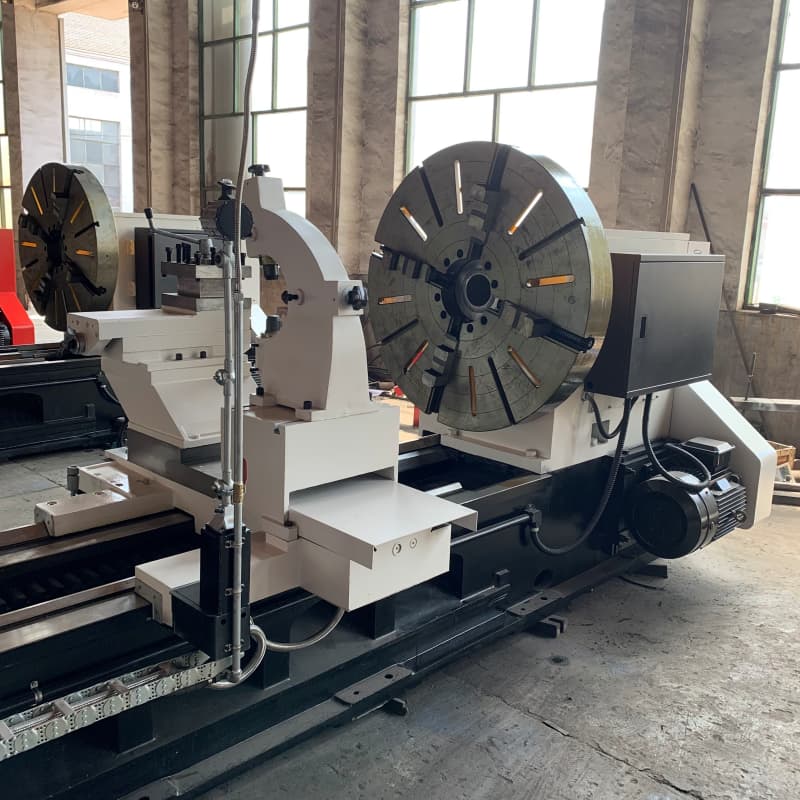

Long Shaft Machining Lathe Facing Machining Lathe

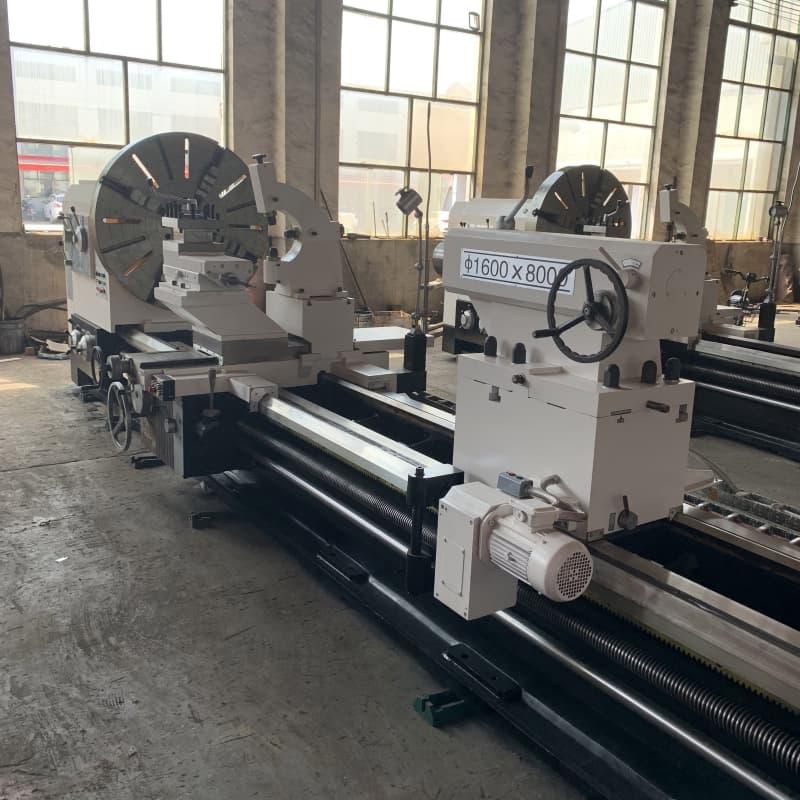

Thread Cutting Lathe Precision Centering Lathe

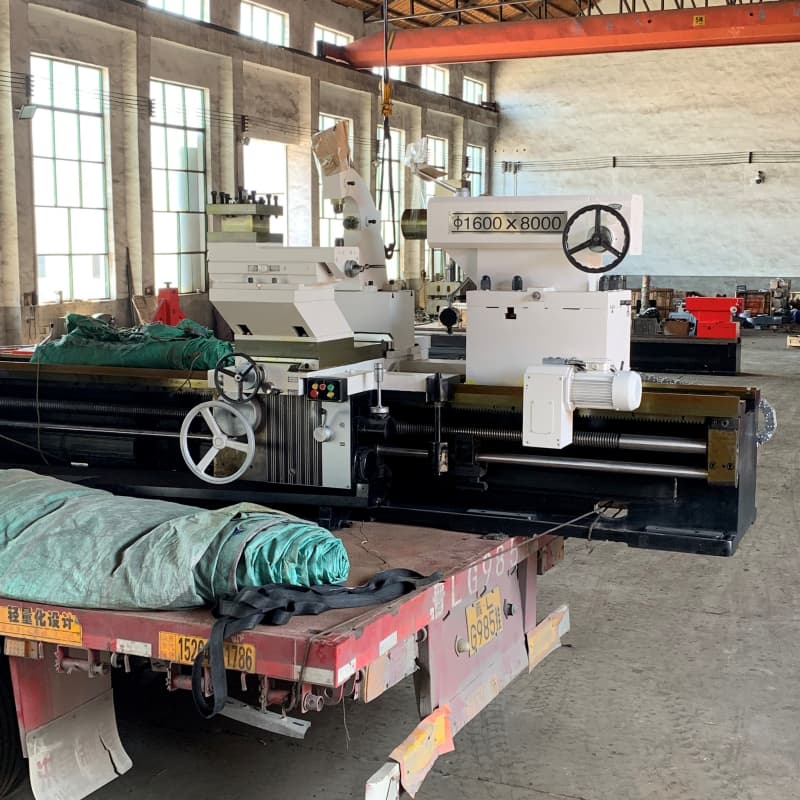

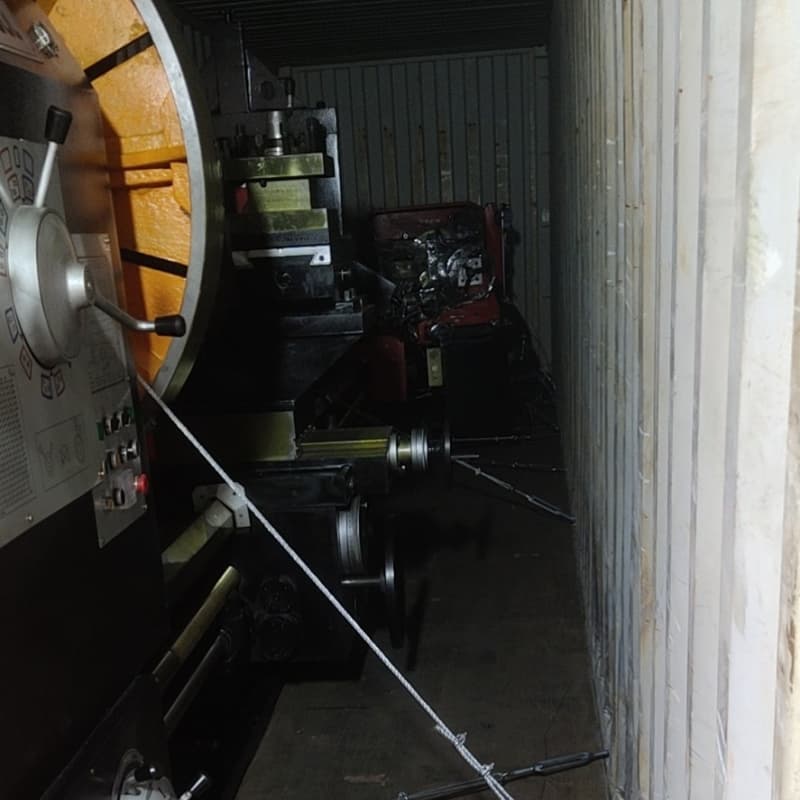

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

horizontal and vertical milling machine

packing

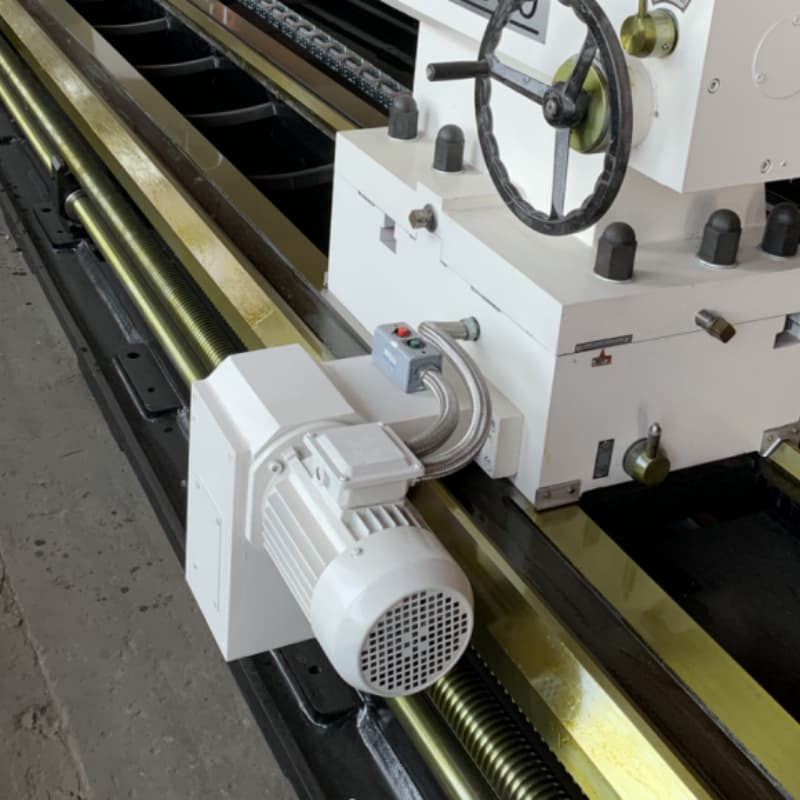

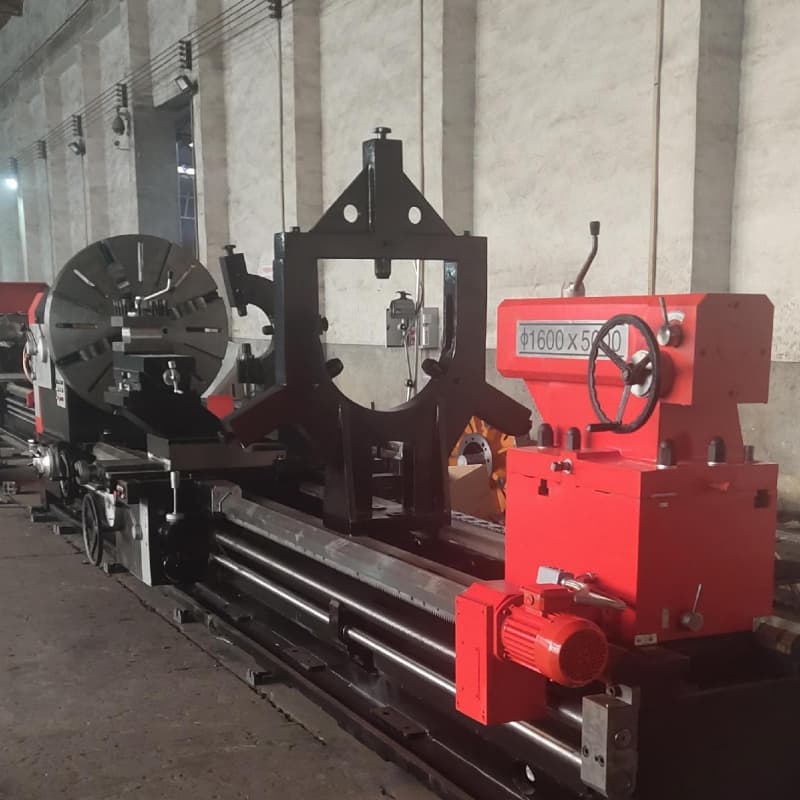

Q: What are the advantages of the motorized tailstock?

A: The motorized tailstock realizes automatic feeding and retracting, saves manual labor, improves working efficiency, and ensures consistent positioning accuracy during batch processing.

Q: What is the spindle bore diameter?

A: The spindle hole adopts large aperture design, which can pass through long bar materials, suitable for tubular and shaft workpieces. Specific size can be provided upon request.

Q: What material is the machine bed made of?

A: The whole bed is made of high-strength cast iron with strict aging treatment. It features high rigidity, anti-deformation and good shock resistance for long-term heavy load work.

Q: What processing operations can this lathe complete?

A: It can perform turning outer circle, inner hole, end face, taper, thread, grooving and knurling. Widely used for rough and finish machining of metal workpieces.

Q: What is the spindle speed range?

A: It has wide speed regulation range, stable rotation and strong load-bearing capacity, meeting the turning demands of different metal materials.

ETIQUETAS CALIENTES :

Productos relacionados

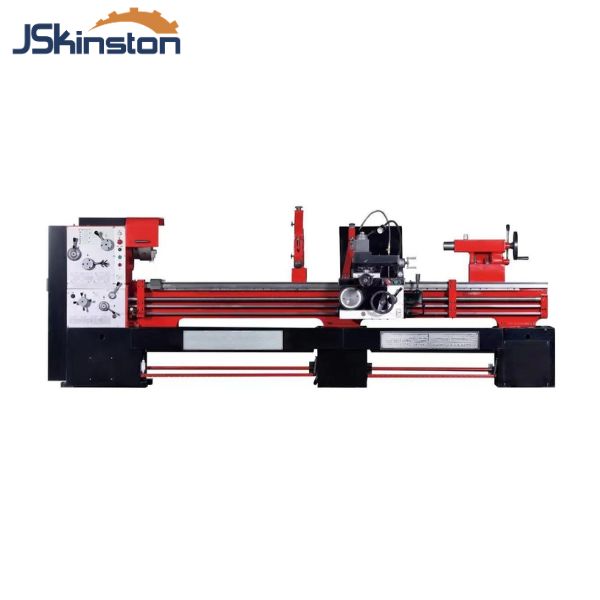

Torno manual de alta calidad CW6263/6280 para corte de metales de alta resistencia
