Customized X715/716 Bed-type Milling Machine for High Speed Metal Cutting

Full Automatic Universal Milling Machine

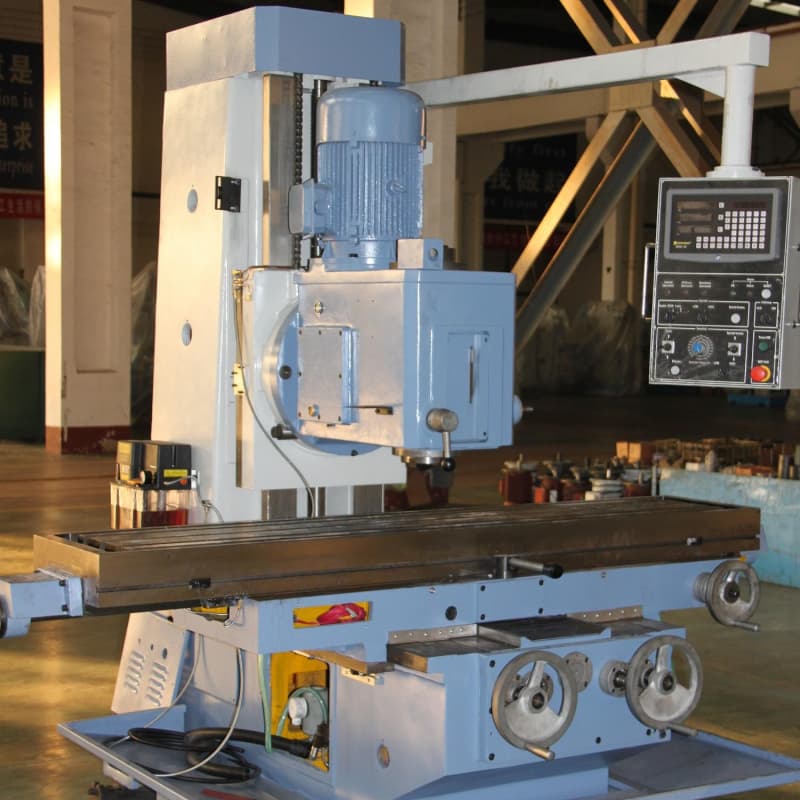

Customized X715/716 Bed-type Milling Machine for High Speed Metal Cutting

The X715/X716 CNC intelligent bed-type milling machine integrates advanced CNC control technology and automated components, designed for high-precision, large-batch processing needs in modern manufacturing. It adopts a professional CNC system with intuitive operation interface, supporting automatic program input, parameter adjustment and real-time fault self-diagnosis, greatly reducing manual operation errors and improving processing efficiency. Equipped with servo motors on X/Y/Z axes and high-precision ball screws, it achieves precise positioning and smooth feed movement, ensuring consistent machining accuracy for batch production.

Pedido (MOQ) :
1
Origen del producto :
China
Color :
Customized
Puerto de embarque :
Qingdao
Plazo de entrega :
30
Peso :
9000Kg

Pregunte ahora

Customized X715/716 Bed-type Milling Machine for High Speed Metal Cutting

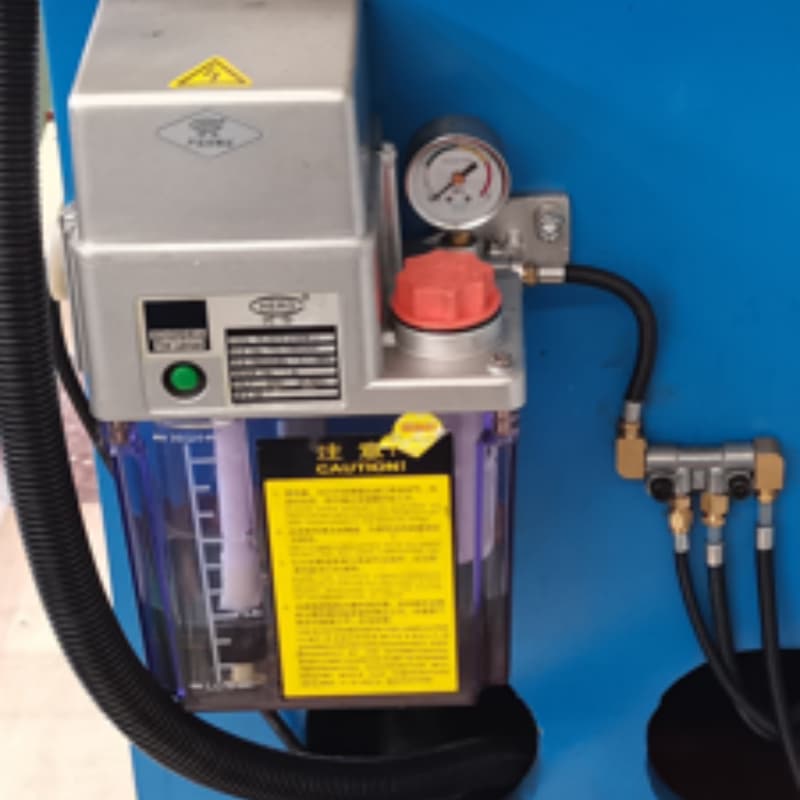

This intelligent model retains the core advantages of the X715/X716 series, with the X715 supporting rapid traverse of 3500mm/min and the X716 reaching 3000mm/min, significantly shortening processing cycles. It supports compatibility with industrial automation systems and robotic loading/unloading equipment, seamlessly integrating into smart workshop production lines for unmanned continuous processing. The automatic centralized lubrication system and intelligent temperature control design further reduce daily maintenance workload and ensure long-term stable operation, suitable for high-end manufacturing fields such as aerospace parts, precision molds and auto components.

specification

Specification	Units	X715	X716
Spindle hole taper		7:24 ISO 50
Spindle speed range	r/min	6-300,30-1500
Distance betwteen spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	10-650	10-700
Distance between spindle axis and table surface(H)	mm	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-x	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-XY	mmmin	2.5-3000
Table feed-Z	mm/min	2.5-2500
Table rapid feed XYIZ	mm/min	6000/6000/3000
Main motor power	kw	11
Torque of XYIZ axis AC serve motor	Nm	18/23/18
Cooling pump motor power	W	90
Overall size	mm	322024202800	438025202800
Net weight	kg	7300	9000

Product Advantages

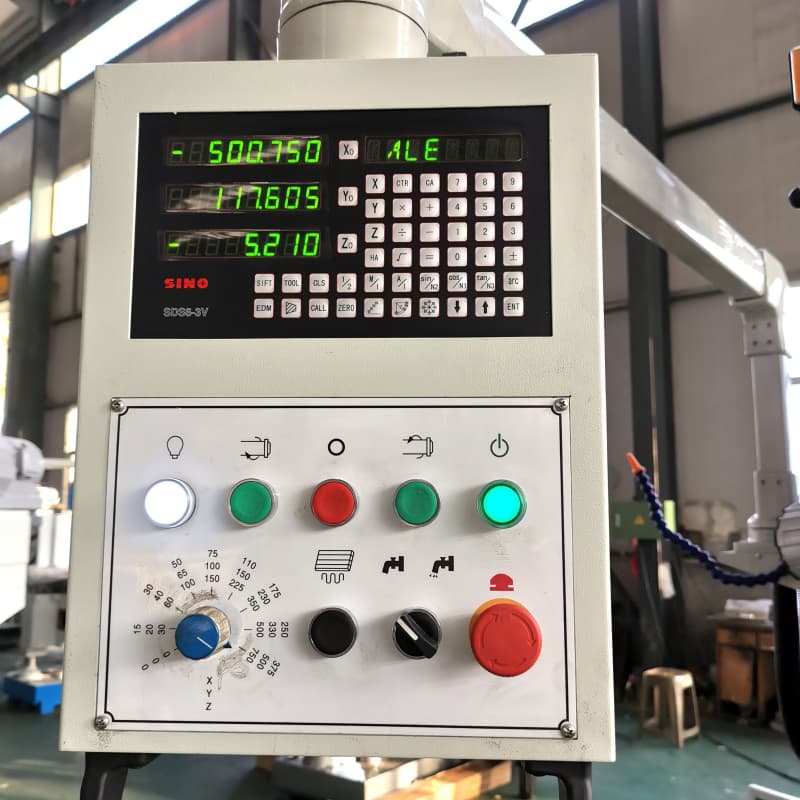

CNC Intelligent Control

Advanced CNC system with automatic programming and fault self-diagnosis, improving processing efficiency and precision.
Precision Transmission

Servo motors and ball screws, ensuring precise positioning and smooth feed movement.
Automation Compatibility

Integrates with automated production lines and robotic loading/unloading for unmanned operation.
High-Efficiency Production

Fast rapid traverse and intelligent temperature control, suitable for large-batch, high-precision processing.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

vertical milling machine

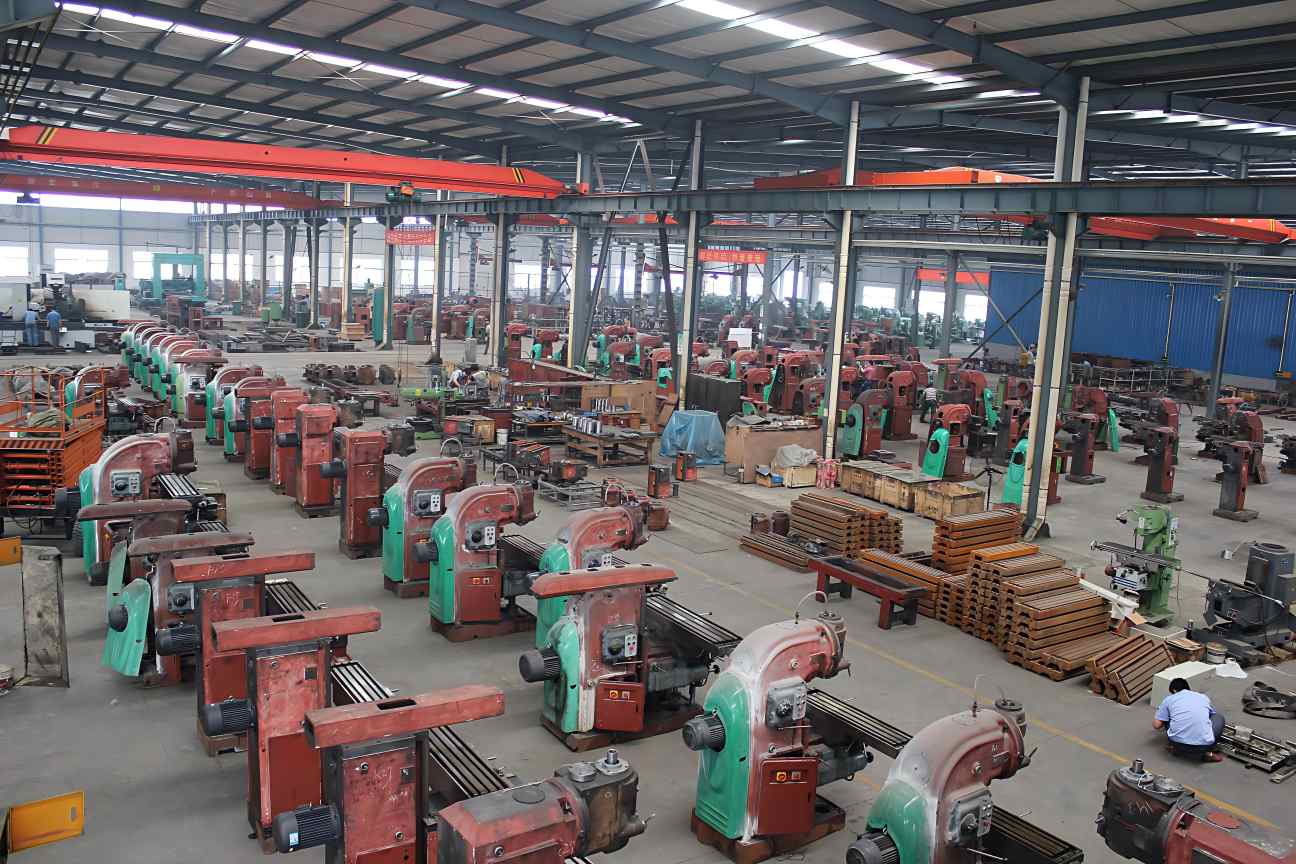

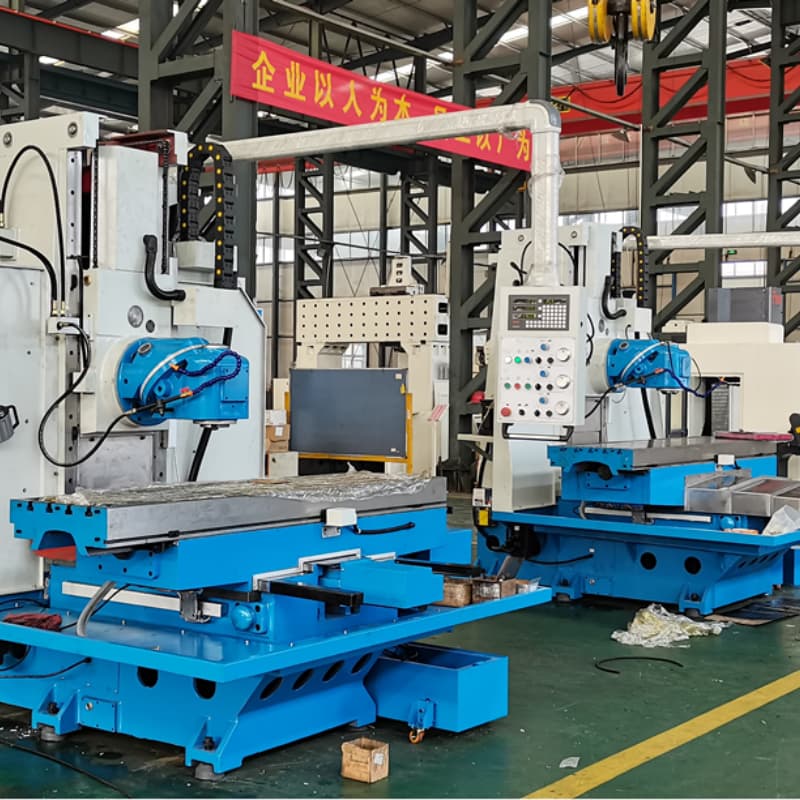

factory show

Professional Production Base, Strength in Precision Manufacturing.

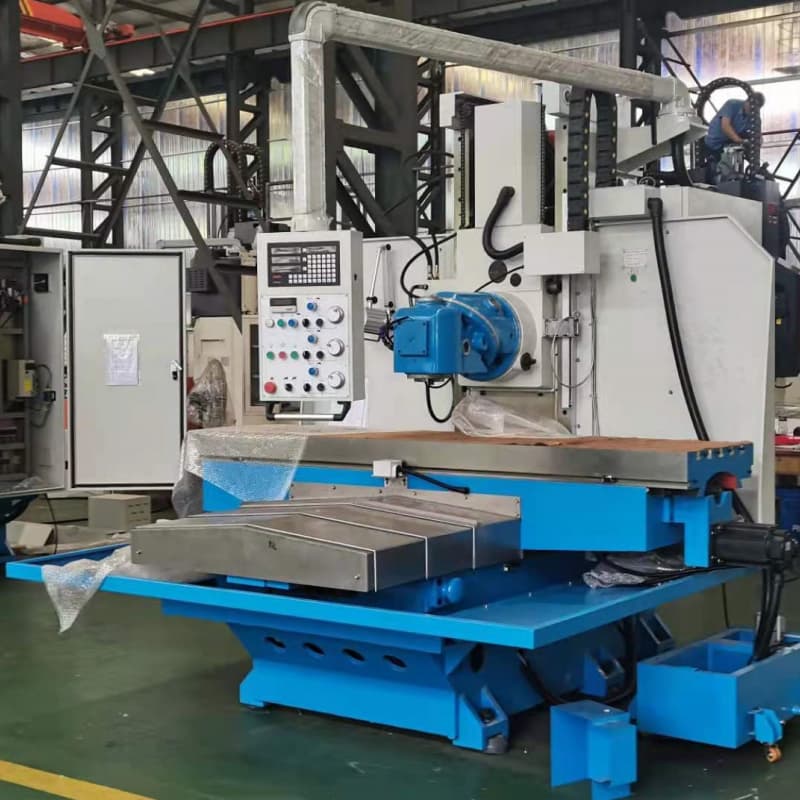

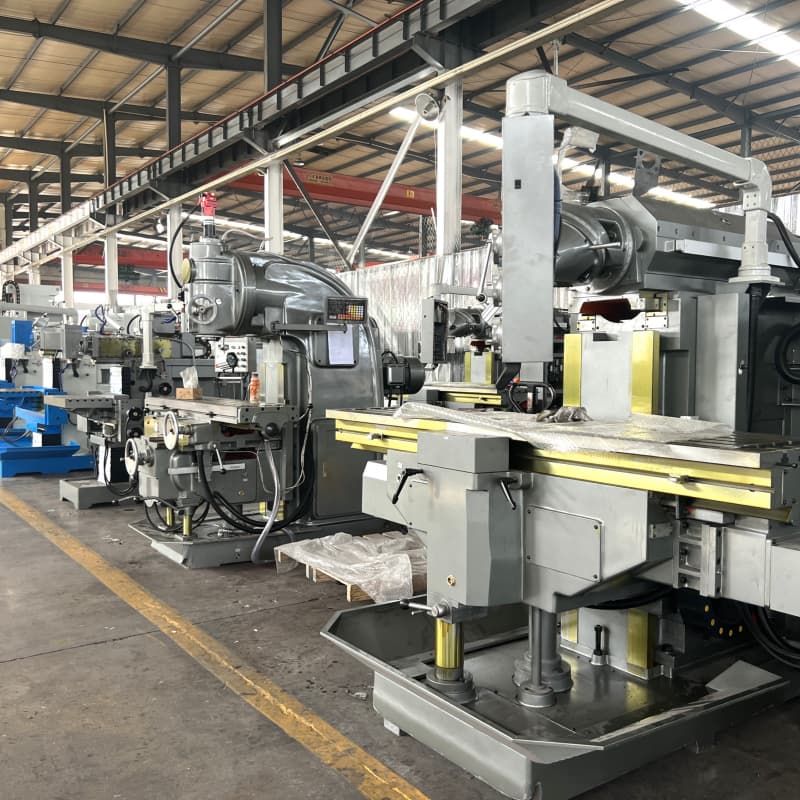

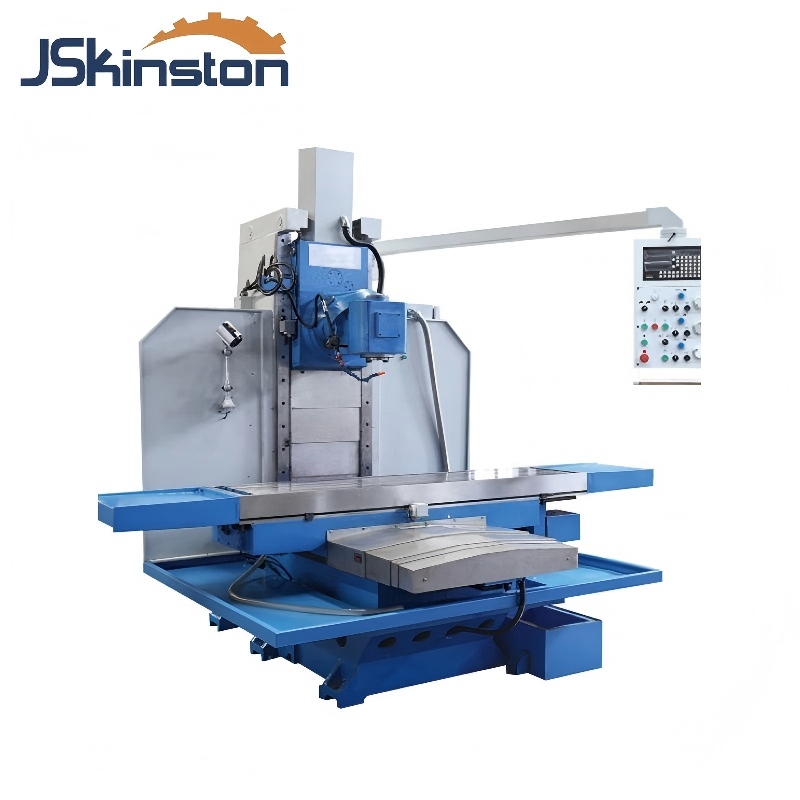

universal swivel head milling machine Conventional Machinery

Industrial Milling Machine ISO50 Vertical Milling Machine

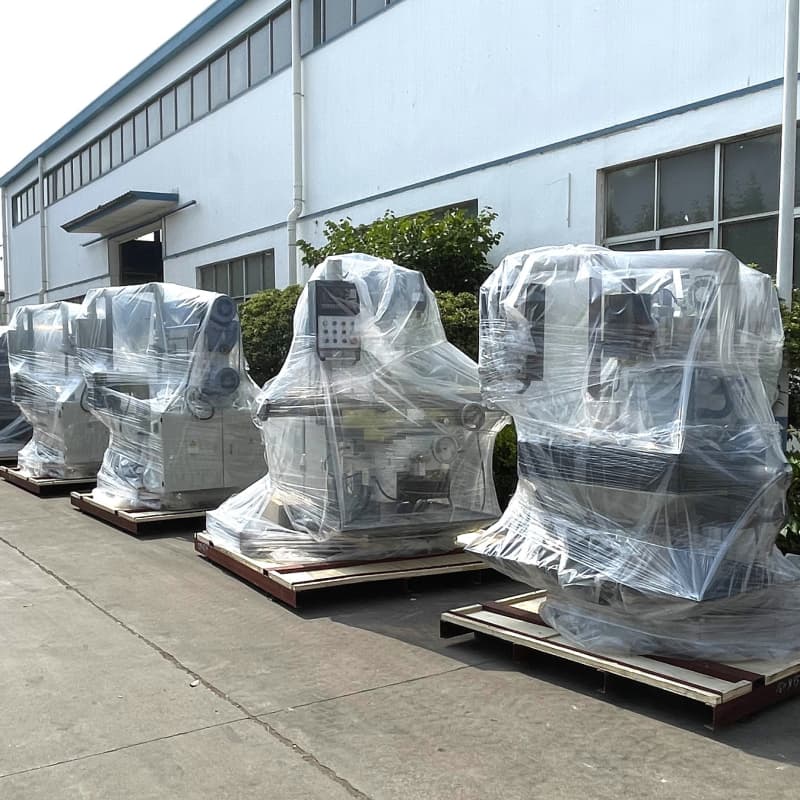

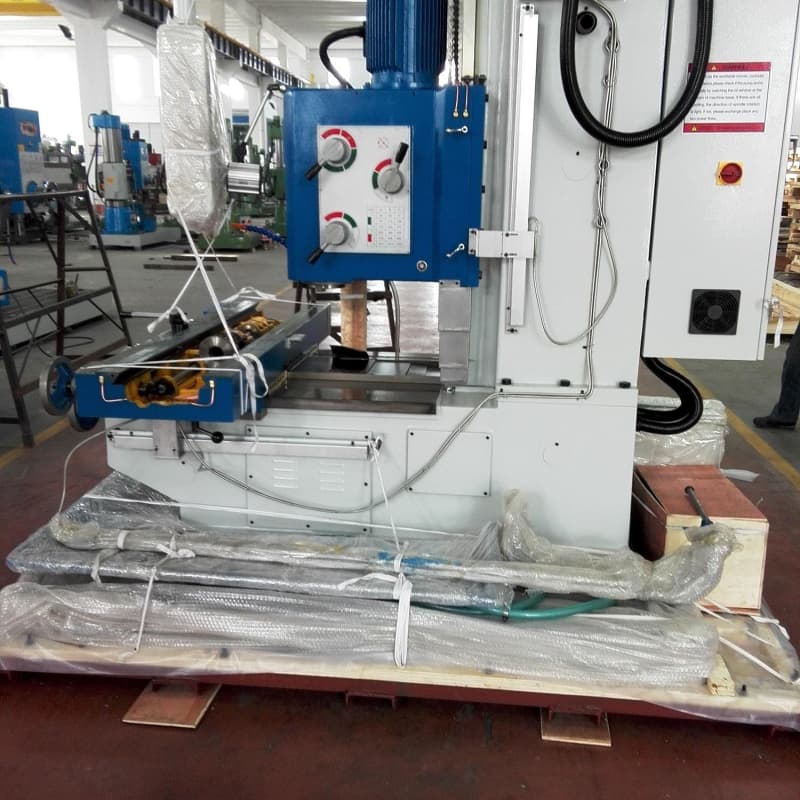

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

horizontal and vertical milling machine

packing

Q: What are the core advantages of X715 and X716 bed-type milling machine?

A: Adopting rigid bed structure, stable overall performance, strong cutting capacity and long service life, ideal for heavy-duty workshop processing.

Q: What kind of processing work is the bed-type milling machine suitable for?

A: It is widely used for plane milling, groove processing, drilling, boring and keyway cutting in machinery repair and parts manufacturing.

Q: How about the rigidity and stability of X715 / X716?

A: The integral cast iron bed and reinforced column design effectively reduce vibration, ensuring smooth cutting and good workpiece surface quality.

Q: Is this bed-type milling machine easy to operate and maintain?

A: The mechanical structure is simple and reliable, with convenient speed adjustment and lubrication system, low daily maintenance difficulty and cost.

Q: What metal materials can X715 and X716 process?

A: It can process cast iron, carbon steel, aluminum, copper and alloy materials, with strong versatility for various conventional cutting tasks.

Q: What is the difference between bed-type milling machine and ordinary bench milling machine?

A: Bed-type structure provides larger load capacity, higher overall rigidity and better stability, suitable for long-time heavy cutting work.
