CNC Slant Bed Lathe CKY61100 for heavy shaft hydraulic component metal turning

This heavy duty slant bed CNC lathe CKY61100, max swing 1000mm, optional turning length. Rigid rectangular hard guideway for heavy cutting. Control system, chuck and spindle bore can be customized.

Pedido (cantidad mínima de pedido) :
1
Origen del producto :
China
Puerto marítimo :
Shanghai
Plazo de entrega :
40
Peso :
22000KG

Consulta ahora

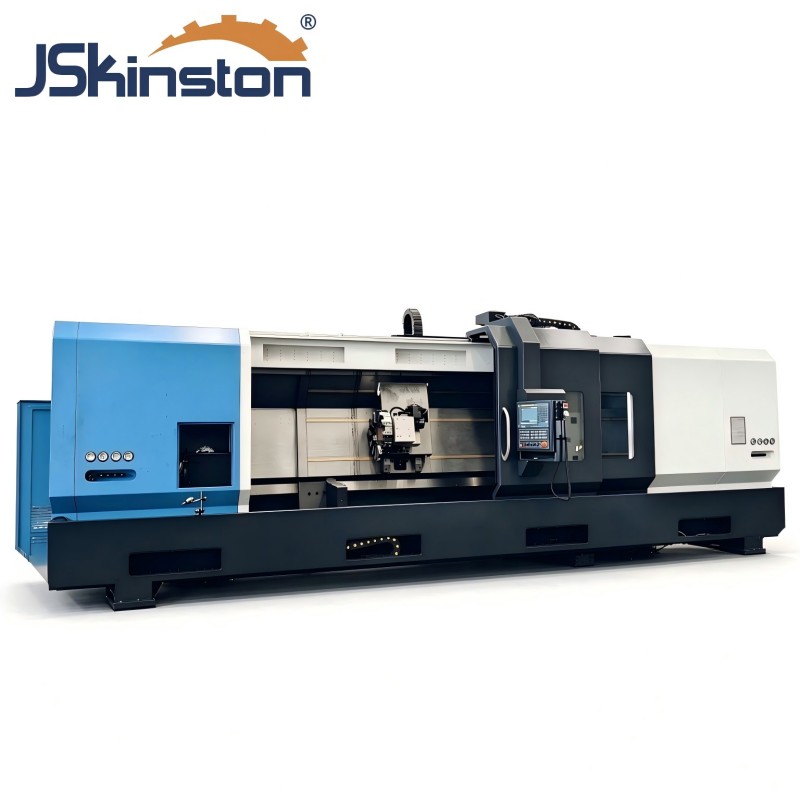

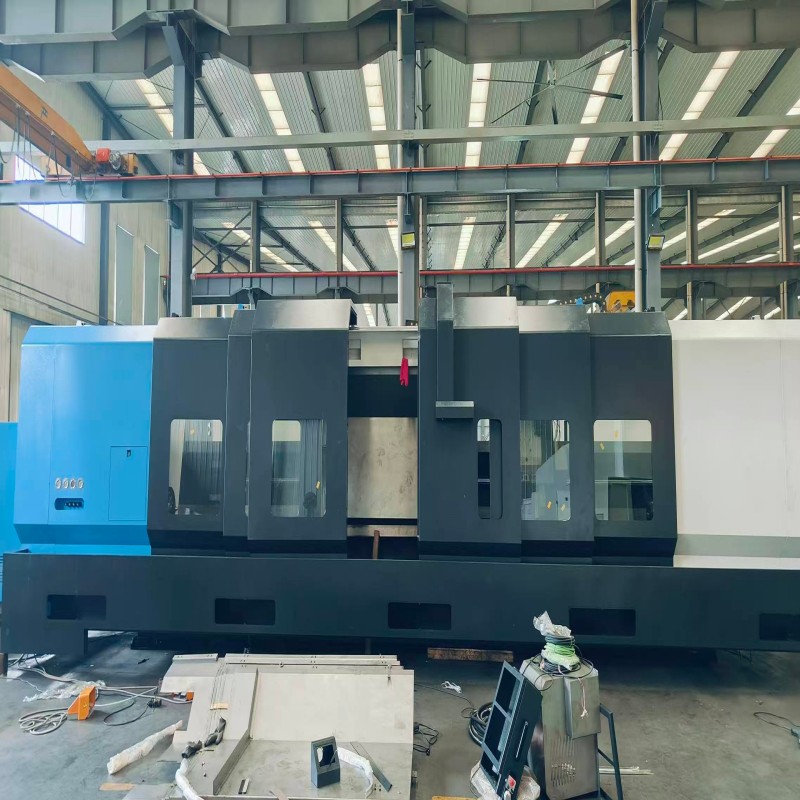

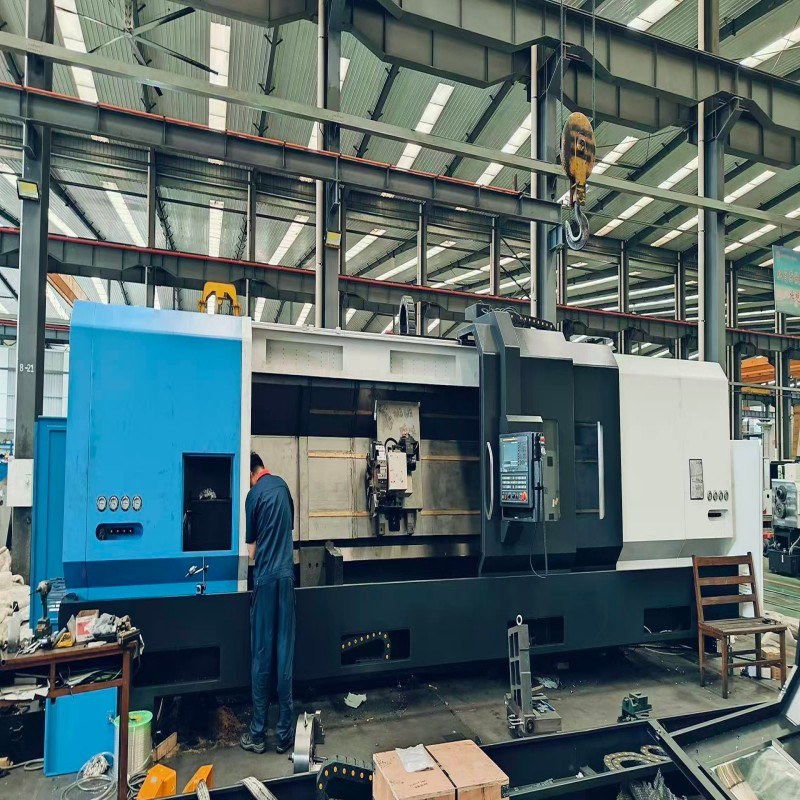

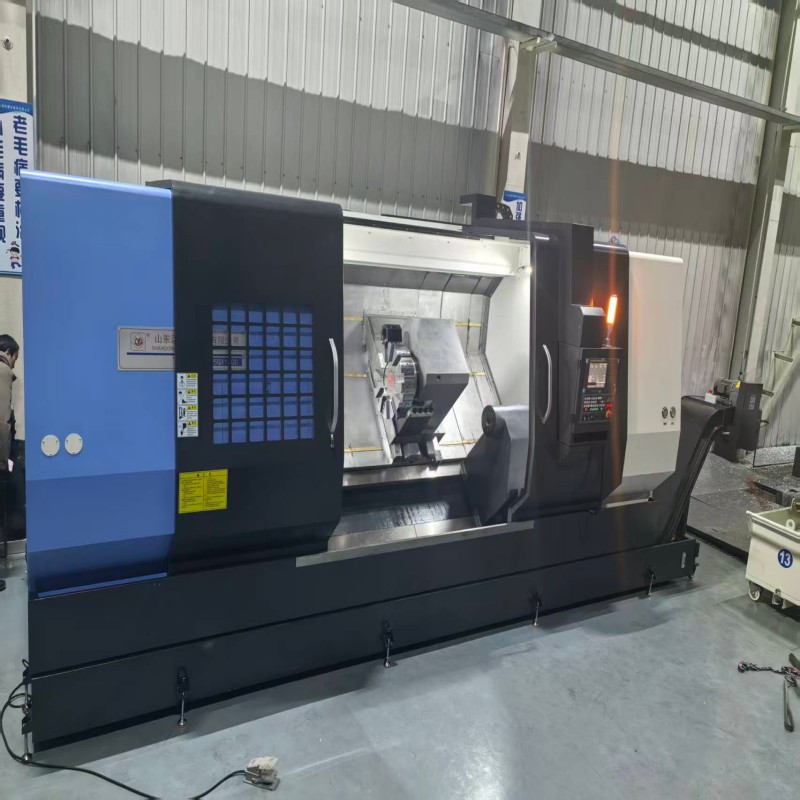

Heavy duty CNC Slant Bed Lathe CKY61100-3000

1. High rigidity thick cast iron bed with rectangular hard guideway, excellent vibration resistance for continuous heavy cutting.

2. Max swing over bed 1000mm, multiple turning lengths optional: 1500/2000/3000/4000mm.

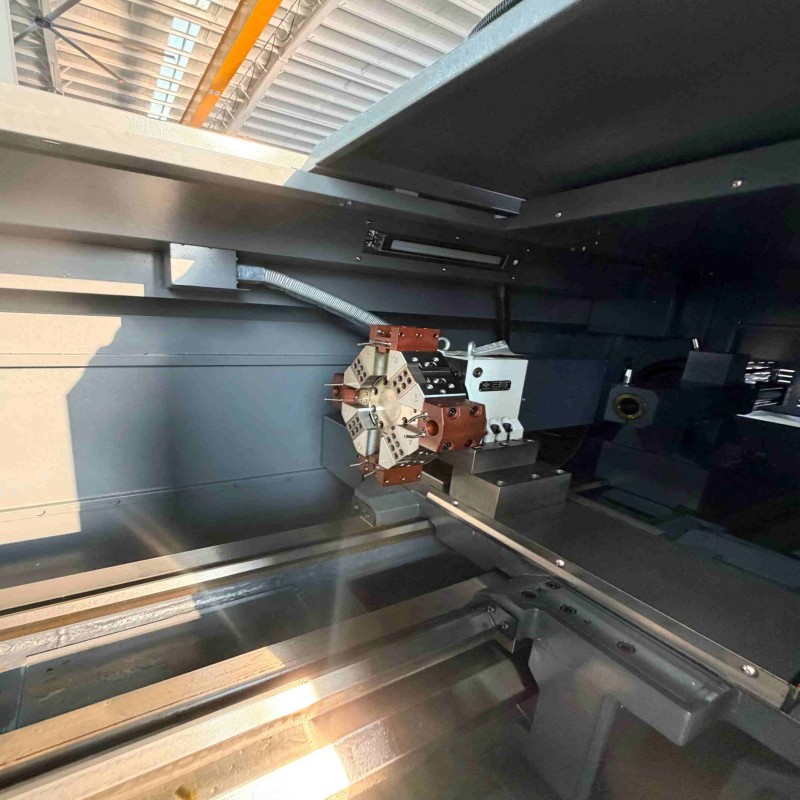

3. Custom slant bed structure for smooth chip removal, convenient for heavy workpiece loading and processing observation.

4. Max load between centers up to 5 ton, high spindle torque, perfect for rough machining and heavy cutting.

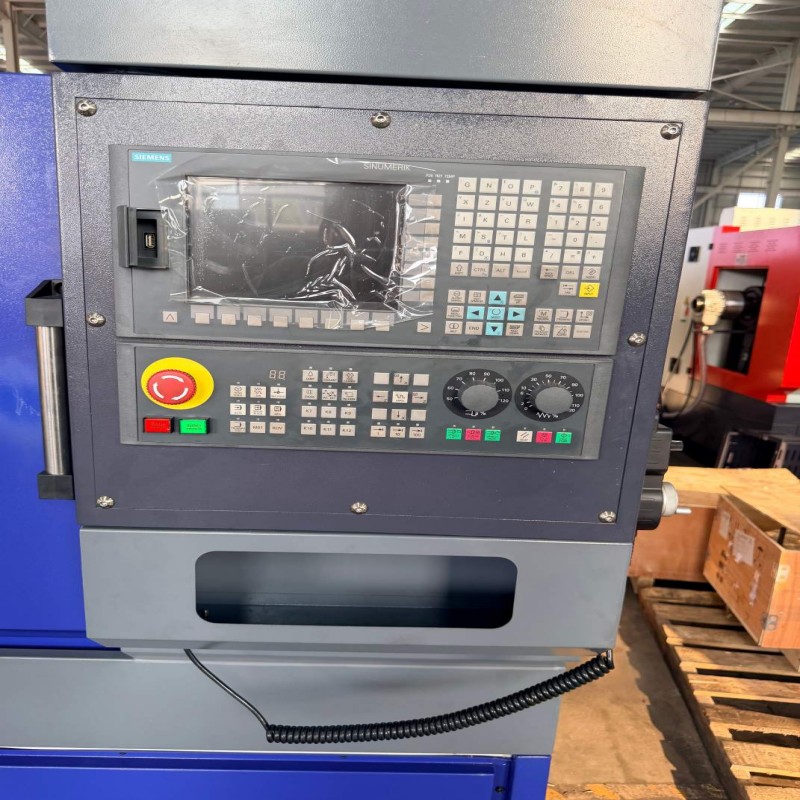

5. Optional control systems: GSK, Siemens, Fanuc, stable performance and support various turning cycles.

6. Spindle bore, hydraulic chuck and tool post can be customized to meet different machining demands.

7. Horizontal structure, suitable for long shafts, rollers, flanges, hydraulic, petroleum and mining components.

8. Strict full machine inspection before shipment, equipped with operation manual and commissioning video.

specification

Specifications			Unit	Parameters
Maximum swivel diameter on the bed			mm	Φ1000
Maximum swivel diameter of workpiece on the cross slide			mm	Φ800
Maximum workpiece length			mm	3000
Maximum turning diameter of workpiece		Shafts	mm	(Recommended for diameters of 750 mm or less)
		Discs	mm	Φ1000
Spindle bore diameter			mm	Φ115
Spindle taper				120 mm
Spindle head type				A2-11
Spindle speed range			r/min	20～350；300～800
Main motor power			kW	30/37
Hydraulic solid four-jaw chuck diameter			mm	Φ630
Tailstock sleeve diameter			mm	Φ170
Tailstock sleeve travel			mm	150
Taper bore at the front end of the tailstock sleeve				Mo's No. 6
Feed motor (X/Z)			Nm	30/30
Rapid traverse speed of feed axes (X/Z)			m/min	X∶10/ Z∶10
Maximum travel of feed axes (X/Z)			mm	550/3050
Tool holder capacity				12
Tool specifications	Outer diameter tools		mm	32×32
	Inner diameter tools		mm	Φ80
Dimensional accuracy of precision external turning				IT6
Surface roughness Ra value of precision external turning			μm	0.8-1.6
Precision turning outer diameter roundness			mm	0.005/Φ200
Precision turning outer diameter consistency			mm	0.03/Φ200x300
Precision turning end face flatness			mm	0.020/Φ300
Minimum feed axis setting increment (X/Z)			mm	0.001
Feed axis repeatability (X/Z)			mm	X∶0.007 Z∶0.025
Feed axis positioning accuracy (X/Z)			mm	X∶0.010 Z∶0.040
Machine body appearance				Color chart: RAL 9003.
Machine base				Color chart: RAL 7021.
Total machine weight			kg	22000
Overall dimensions (L × W × H)			mm	7500×2350×2200

product introduction

Strict Factory Testing & Complete Documents

Each machine is fully inspected before delivery, with operation manual and commissioning video provided.
Wide Machining Compatibility
Ideal for long shafts, rollers, flanges, hydraulic, petroleum and mining heavy parts.
Customizable Configurations
Spindle bore, hydraulic chuck and tool post can be selected according to your workpieces.
